AgeNT-1

AgeNT™-1 is ideal for creating transparent and flexible antennas: DAS, IoT, NFC and others. Available in 2 versions enabling the careful balance of performance and transparency.

Antennas without the design boundaries!

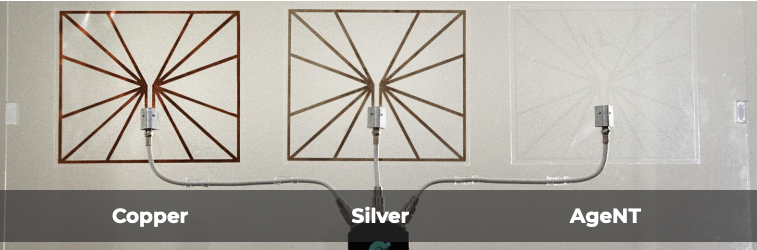

With very low sheet resistance, AgeNT-1 is the optimal formulation when current carrying capacity is the critical design factor. AgeNT-1 is based on a metal mesh (MM) substrate within CHASM's carbon nanotube (CNT) hybrid based printed electronics platform covering a range of formulations that balance transparency and conductivity for a wide range of applications. AgeNT-1 enables engineers or product designers to innovate transparent DAS, IoT, or NFC antennas that unobtrusively disappear into architectural elements like overhead lights, windows, or glazed artwork, putting more antennas closer to points of use to increase signal strength and data speeds.

AgeNT-1 is available in 2 versions enabling the careful balance of performance and transparency.

AgeNT-1 G2 Data Sheet:                     AgeNT-1 G3 Data Sheet:
DOWNLOAD THE DATA SHEET
DOWNLOAD THE DATA SHEET

Specifications

AgeNT-1 G2

Sheet Resistance: 1 Ω/□

VLT: 94% | Total VLT: 87%

Haze: 2.1% | Total Haze: 3.7%

Substrate: 4 mil PET

AgeNT-1 G3

Sheet Resistance: <0.2 Ω/□

VLT: 84% | Total VLT: 78%

Haze: 3.5% | Total Haze: 5%

Substrate: 4 mil PET

Applications

Transparent RF Antennas

Transparent EMI/RF Shielding

Transparent Heaters

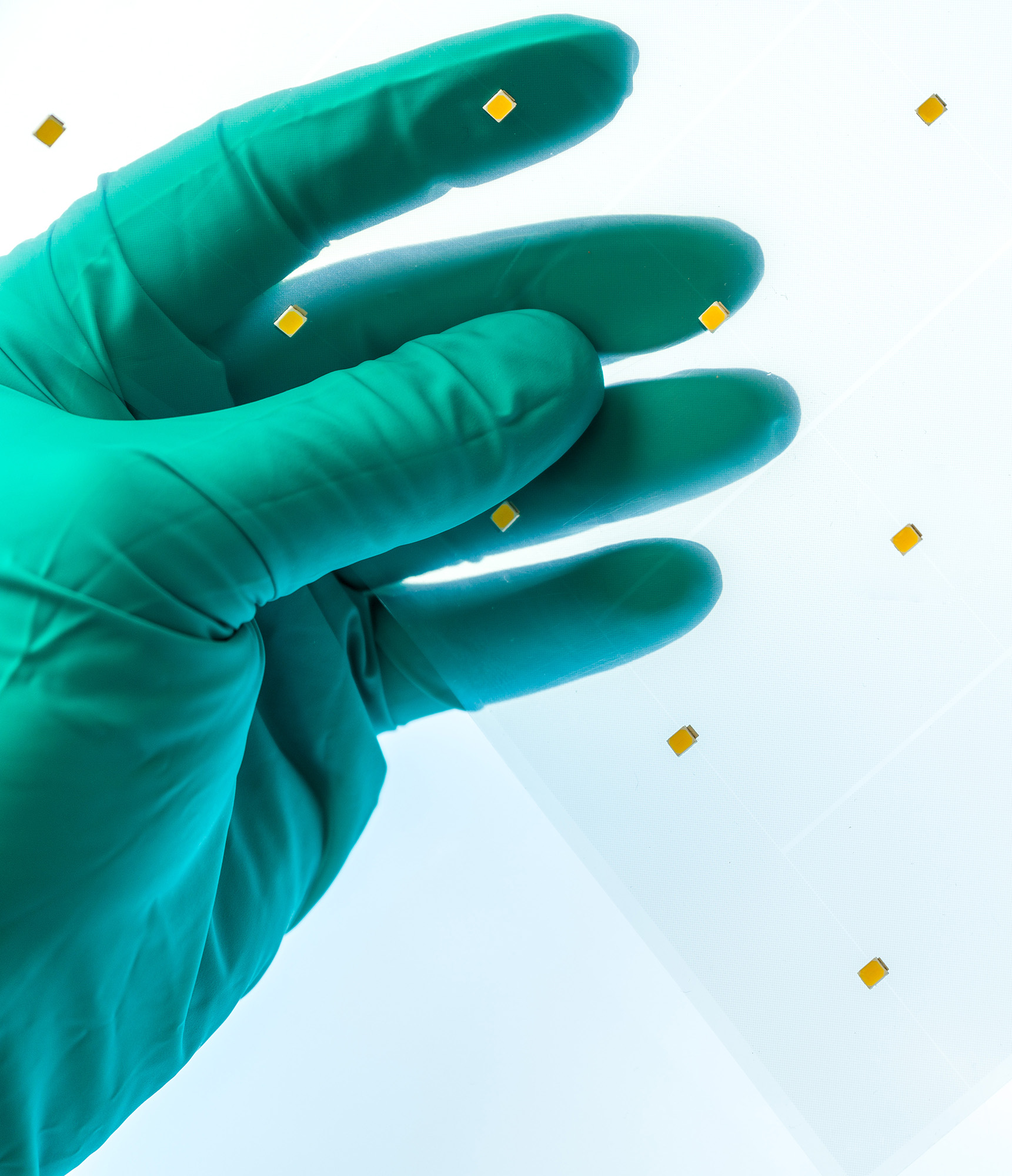

Transparent Electrodes for Lighting

How AgeNT-1 Works

CNT ink is formulated for screen printing and is comprised of a mixture ofour single-walled CNTs (CoMoCAT™ technology), an optically clear polymer binder and our proprietary ink vehicle (V2V™ technology). The grade of CNT ink that is used for making AgeNT-1 product structures is CHASMAGENT-VC201.

MM film is made by creating a Copper (Cu) mesh in a diamond-shaped pattern onto 100μm thick PET film. Thickness of Cu is 2μm. Line width & pitch are 5μm wide by 300μm respectively. The grade of MM film that is used for making AgeNT-1-MM-G2 product structures is CHASM-AGENT-AM310.

MM film is available in standard sheet size of approx. 457mm X 605mm. Sheet sizes as large as 605mm X 1,030mm are also available. MM film can also be provided in 605mm wide rolls. CNT ink is available in standard 1L bottles. Please note min. trace width is 1mm and min gap width is 0.2mm.
